OP04 Wiring - 12v 24v, 2 Wires, power on-open, power off-close electric motorized water ball valve
- group name
- 5 common wiring motor ball valve
- Min Order
- 2 piece
- brand name
- Flomarvel motorized valve wholesale manufacturer
- model
- FH-MO-4
- Nearest port for product export
- Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, DDU, Express Delivery
- Acceptable payment methods
- T/T, Westem Union
- update time
- Thu, 21 Nov 2024 17:33:24 GMT
Paramtents
Actuator color Black ( customizable)
Valve material PVC, Brass, SS304 for option
Valve size 1/4''-1 1/4'' (DN8-DN32)
Thread BSP, NPT for option
Wiring control 2 wire, 3 wire, 5 wire etc.
Manual override Optional
Position indicator Yes
Packging & Delivery
-
Min Order2 piece
Briefing
Auto return / fail safe normally open or normally closed electric motorized ball valve, for automatic flow control
Detailed

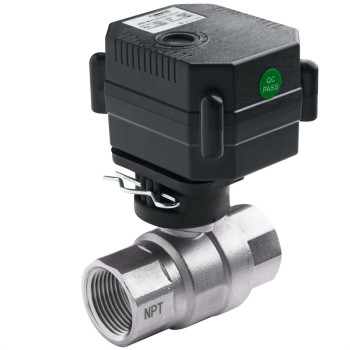

Motorized ball valve
OP02, 2 wires auto return /fail safe
1. Connects Red Wire To Positive Pole, Black Wire To Negative Pole, The Ball Valve Opens (The Ball Valve Is Normally Closed By Default).
2. Disconnect Either Wire (The Circuit Is Open), There Is No Power Supply To The Ball Valve, The Ball Valve Closes.
※ Once In Position, There Is A Nominal Power Consumption To Keep The Capacitor Charged.
※ In Case Of Power Loss, Valve Will Return To Its Normal Position, Which By Default Is Normally Closed Valve. If Normally Open Ball Valve Is Needed, Please Let Us Know When Place An Order.
※ Voltage Of Power Supply For Option：5V DC/9-24V ADC/110-230V AC
※ A On/Off Switch Can Be Installed In Line With Red Wire For A Simple Set Up.
The Internal Capacitor Of The Ball Valve Actuator Is Charged During Initial Powering, Over A Period Of Approximately 60 Seconds. A Negligible Amount Of Power Is Required To Hold Position In Order To Keep The Internal Capacitor Charged. Without A Minimum Of 60 Seconds Powered The Capacitor May Not Maintain Enough Power To Return The Valve To The Closed Position. Once The Power Is Cut Or Lost, The Internal Capacitor Will Use Its Power To Close The Valve Completely.
Features
∎ Precision metal gear, high strength, reliable performance, long service life
∎ Multiple wiring for remote control and valve status feedback to intelligent control unit
∎ Floating sealing ball valve, no leakage
∎ Low power consumption, battery workable
∎ Flame retarded PC-ABS enclosure with compact, exquisite structure for small equipment
∎ IP 67 protection, applicable for humid environment
∎ With visual position indicator
∎ Various connectors customizable
∎ Manual override available for option
Application
Motorized ball valve - widely used in water treatment systems, home automation, HVAC system, irrigation system, wildfire emergency sprinkler system, recreational vehicle (RV), trailer home, sprinkler truck, fire truck, air compressor etc., where automatic remote fluid control is needed.
Purchase guide for motorized ball valve
It Can Be Intimidating To Decide All The Specifications All At Once When Purchasing A Motor Ball Valve. Above Form Should Help To Simplify The Process By Listing The Steps Needed To Tackle All The Specifications.
Dimension
D1/D2 | DN | φd | L1 | L2/L3 |
F
|
H1
|
H2
|
Weight (KG)
|
1/4'' | DN8 | 8 | 45 | 10 |
21
|
68
|
42
|
0.25
|
1/2'' | DN15 | 15 | 57 | 11 | 25 | 71 | 42 | 0.31 |
3/4'' | DN20 | 20 | 63 | 12 |
31
|
74
|
42
|
0.40
|
1'' | DN25 | 25 | 73 | 16 |
37
|
77
|
42
|
0.51
|
Unit: mm
Technical parameters
Series | Torque | Operating time | Working voltage |
Working current
|
Max. power
|
Max. pressure
|
FH | 2.5 N.M | <5S | 3-6V DC, 9-24V ADC, 110-230V AC |
<100 mA
|
5W
|
1.0 Mpa
|
Medium temperature | Ambient temperature | Humidity | Enclosure |
Service life
|
Wiring |
|
0-100℃/32-212℉ | -20-45℃/-4 -113℉ | 95% | IP67 |
50,000 - 80,000 times
|
OP01, OP02, OP03, OP04, OP05 optional, customization available |
Certifications
Factory
Manufacturer sepcialized in electric motor ball valve.
