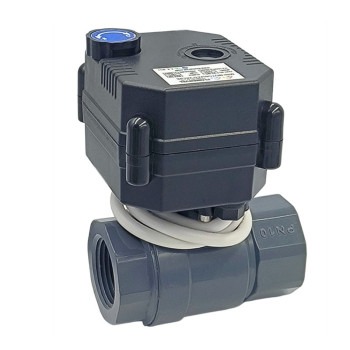

OP01 Wiring - 2 Wires, Reverse Polarity control electric motor actuator ball valve

group name: 5 common wiring motor ball valve

Min Order: 2 piece

brand name: Flomarvel motorized valve wholesale manufacturer

model: FH-MO-4

Nearest port for product export: Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDU, Express Delivery

Acceptable payment methods: T/T, Westem Union

update time: Thu, 21 Nov 2024 17:48:40 GMT

contact supplier

Paramtents

Actuator color Black ( customizable)
Valve material PVC, Brass, SS304 for option
Valve size 1/4''-1'' (DN8-DN25)
Thread BSP, NPT for option
Wiring control 2 wires, 3 wires, 5 wires for option
Manual override Optional
Position indicator Yes

Packging & Delivery

Min Order2 piece

Briefing

Motor ball valve manufacturer, 12V 24V, 1/4 inch-2 inch for smart home, water supply system, equipment or process automation

Detailed

Motor ball valve ball valve

OP01 Wiring - 2 wires, reverse polarity

OP01 Wiring - 2 Wires, Reverse Polarity

1. Connects Red Wire To Positive Pole, Black Wire To Negative Pole, The Electric Ball Valve Opens.

2. Reverse Polarity, The Eletric Ball Valve Closes.

※ Once In Position, There Will Be No Power Consumption.

※ In Case Of Power Loss, Valve Will Remain In Its Current State.

※ Voltage Of Power Supply For Option：5V DC/12V DC/9-35V DC

※ A DPDT Switch Is Suggested For A Simple Set Up.

Click to check other wirings available.

Featured Clip-Pin connection of motor ball valve

What is great about the clip-pin connection?

With adapters assembled to the electric motor actuator and ball valve, the actuator and ball valve can be assembled and disassembled in seconds, which makes:

① installation much easier. When the mounting space is limited, install the ball valve on the pipe first and then mount the electric actuator on to it will make the process much easier. ② repairing much less troublesome. When there is a malfunction, mostly only need to change or repair the actuator, with this design, it won't be necessary to stop the whole system to take off the whole set of valve off the pipe, taking off the actuator to replace with a good one will minimize the affect of a part failure. ③ tremendous reduction in inventory for retailers, for whom stock valve of various specifications, instead of stocking whole set of electric ball valve, seperately stock electric actuator and ball valve would make inventory much more flexible.

Features

∎ Precision metal gear, high strength, reliable performance, long service life

∎ Multiple wiring for remote control and valve status feedback to intelligent control unit

∎ Floating sealing ball valve, no leakage

∎ Low power consumption, battery workable

∎ Flame retarded PC-ABS enclosure with compact, exquisite structure for small equipment

∎ IP 67 protection, applicable for humid environment

∎ With visual position indicator

∎ Various connectors customizable

∎ Manual override available for option

Application

Electric motor ball valve - widely used in water treatment systems, home automation, HVAC system, irrigation system, wildfire emergency sprinkler system, recreational vehicle (RV), trailer home, sprinkler truck, fire truck, air compressor etc., where automatic remote fluid control is needed.

How do motorized ball valve work?

Electric motor ball valves are designed with an electric motor actuator that rotates the ball inside the valve body, allowing or blocking the flow of fluids. This design ensures quick response times and precise control, making them ideal for applications requiring frequent adjustments or precise flow rates.

The key component of an electric motor ball valve is the motor actuator. This motor actuator is connected to the valve body and controls the position of the ball inside. When the motor actuator receives a signal, it rotates the ball to either open or close the valve. The actuator can be operated manually or remotely, depending on the application and requirements.

The ball inside the valve body has a hole or port through which the fluid flows. When the valve is open, the ball aligns with the flow path, allowing the fluid to pass through. Conversely, when the valve is closed, the ball rotates to block the flow path, preventing the fluid from passing through.

The design of the ball and the sealing mechanism ensures a tight and leak-free seal when the valve is in the closed position. This is essential in applications where the prevention of fluid leakage is crucial, such as in oil and gas pipelines or chemical processing plants.

Electric motor ball valves are available in various sizes and materials to suit different applications. They can be made from materials such as stainless steel, brass, or PVC, depending on the media being controlled and the environmental conditions.

In summary, electric motor ball valves work by using an electric motor actuator to rotate a ball inside the valve body, controlling the flow of fluids. Their design allows for quick response times and precise control, making them ideal for applications requiring accurate flow control.

Dimension

D1/D2	DN	φd	L1	L2/L3	F	H1	H2	Weight (KG)
1/4''	DN8	8	45	10	21	68	42	0.25
1/2''	DN15	15	57	11	25	71	42	0.31
3/4''	DN20	20	63	12	31	74	42	0.40
1''	DN25	25	73	16	37	77	42	0.51

Unit: mm

Technical parameters

Series	Torque	Operating time	Working voltage	Working current	Max. power	Max. pressure
FH	2.5 N.M	<5S	3-6V DC, 9-24V ADC, 110-230V AC	<100 mA	5W	1.0 Mpa
Medium temperature	Ambient temperature	Humidity	Enclosure	Service life	Wiring
0-100℃/32-212℉	-20-45℃/-4 -113℉	95%	IP67	50,000 - 80,000 times	OP01, OP02, OP03, OP04, OP05 optional, customization available
