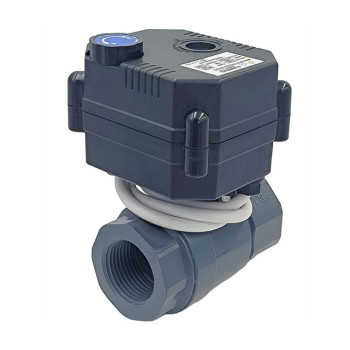

2 port 12V 24V DC electric motorized actuator 1/2 3/4 1 inch DN15 DN20 25 water control ball valve

FOB Price: US $22.01 - 1 piece

group name: pvc motorized ball valve

Min Order: 2 piece

brand name: Flomarvel motorized valve wholesale manufacturer

model: FH-MO-9

Nearest port for product export: Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDU, Express Delivery

Acceptable payment methods: T/T, Westem Union

update time: Thu, 21 Nov 2024 18:09:27 GMT

contact supplier

Paramtents

Voltage of power supply 3-6V DC, 9-24VADC, 110-230V AC
Valve material PVC, Brass, SS304 for option
Valve size 1/4''-1'' (DN8-DN25)
Thread BSP, NPT for option
Electrical connection 35cm (13'') lead wires
Wiring control 2 wire, 3 wire, 5 wire for option
Manual override Optional
Position indicator Yes

Packging & Delivery

13cm x11cm x9cm
Min Order2 piece

Briefing

Electric motor actuated ball valve - 1/2inch, 3/4 inch, 1 inch; PVC, brass, stainless steel valve body for option

Detailed

Electric motor actuated ball valve

Features

∎ Precision metal gear, high strength, reliable performance, long service life

∎ Multiple wiring for remote control and valve status feedback to intelligent control unit

∎ Floating sealing ball valve, no leakage

∎ Low power consumption, battery workable

∎ Flame retarded PC-ABS enclosure with compact, exquisite structure for small equipment

∎ IP 67 protection, applicable for humid environment

∎ With visual position indicator

∎ Various connectors customizable

∎ Manual override available for option

Exploring the functionality and Application of electric actuated ball valve

Are you tired of manually operating ball valves? In today's fast-paced world, automation has become essential for efficient and reliable operations. That's where electric actuated ball valves come into play. With their unique functionality and wide range of applications, electric actuated ball valves are revolutionizing the valve industry.

Using an electric motor, these valves allow for precise control and quick adjustment of the flow of liquids or gases. From industrial processes to HVAC systems, electric actuated ball valves can be found in various industries, ensuring seamless operations and improved productivity.

Whether you need to open or close a valve remotely, regulate flow rates, or automate your system for optimal performance, electric actuated ball valves provide the perfect solution. With their compact design, low power consumption, and reliable performance, these valves offer numerous advantages over traditional manual valves.

Application

Electric actuated ball valve - widely used in water treatment systems, home automation, HVAC system, irrigation system, wildfire emergency sprinkler system, recreational vehicle (RV), trailer home, sprinkler truck, fire truck, air compressor, washing machine, etc., wherever automatic remote fluid control is needed.

Dimension

D1/D2	DN	φd	L1	L2/L3	F	H1	H2	Weight (KG)
1/2''	DN15	14	61	12.5	25	69.3	42	0.21
3/4''	DN20	17	74	19	31	71	42	0.24
1''	DN25	23	80	18	37	76	42	0.29

Unit: mm

Technical parameters

Series	Torque	Operating time	Working voltage	Working current	Max. power	Max. pressure
FH	2.5 N.M	<5S	3-6V DC, 9-24V ADC, AC110-230V	<100 mA	5W	1.0 Mpa
Medium temperature	Ambient temperature	Humidity	Enclosure	Service life	Wiring
0-100℃/32-212℉	-20-45℃/-4 -113℉	95%	IP67	50,000 - 80,000 times	OP01, OP02, OP03, OP04, OP05 optional, customization available
